As a national high-tech enterprise, CHAP has dozens of patents, for example, “hydraulic injection molding machine with clamping structure”,the company also has national key new products, the National Science and Technology. Achievement Program, and the National Ministry of Science and Enterprise Technology Innovation Fund Projects.
Besides the traditional link-type (toggle) injection molding machines of various specifications, CHAP also has the most advanced full hydraulic two platen plastic injection molding machine, and formed a medical products, thermosetting injection molding , bi-color plastic,special machines and other system perform solutions.
What is the difference with other injection molding machine factories is that CHAP has years of research and production experience of two platen injection molding machine, the innovations used in the field of injection molding machines, to achieve industrial applications.
The full hydraulic two platen plastic injection molding machine has the advantage that conventional rod machine do not have. Not only in the technical features, more reliability and convenience in embody the value of full hydraulic two platen plastic injection molding machines. The applications of hydraulic injection molding machine is the systemic breakthrough of the application of the traditional injection molding machine. In terms of technology, hydraulic application of the two platen structure, breaks the bottlenecks in the application of traditional mechanical structure of injection molding ,which enables customers to design more targeted application of more energy—efficient injection molding products.
For meeting your increasing demand,and insuring our users own more advantages in drastic competition, we will always struggle on the road and make more contributions for our clients,employees and society.

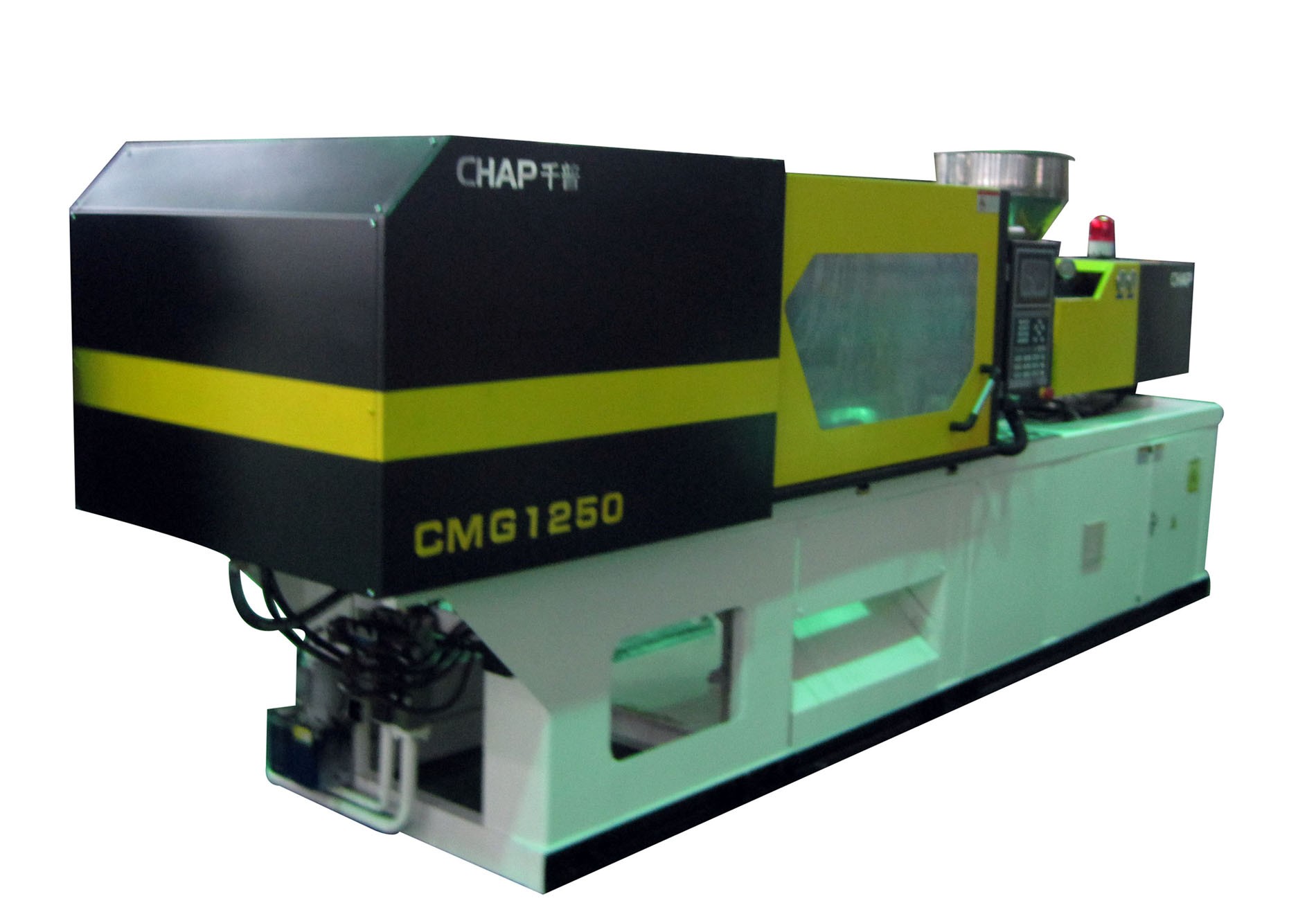

CMG1250 Specification
DESCRIPITION
INJECTION UNIT
Screw no
A
B
C
Screw diameter
mm
38
42
45
Screw LD ratio
L/D
23.2
21
20
Theoretical injection capacity
cm3
198
242
278
Injection weight(PS)
g
180
220
252
Injection pressure
Mpa
223
182
159
Plasticizing capacity(PS)
g/s
14.1
17.5
19.5
Screw speed
rpm
0~180
CLAMPING UNIT
Clamping force
KN
1250
Moving mould distance
mm
380
Tie bar spacing
mm
410×355
Max.mould thickness
mm
430
Min.mould thickness
mm
130
Ejector stroke
mm
125
Ejector force
KN
32
Ejector bar amount
PC
5
OTHERS
Max.pump pressure
Mpa
16
Pump motor power
KW
11
Heating power
KW
7.5
External dimension(L×W×H)
m
4.4×1.4×1.75
Weight
t
3.5
Material cylinder capacity
L
25
Oil tank capacity
L
260
UNIT
CMG1250
